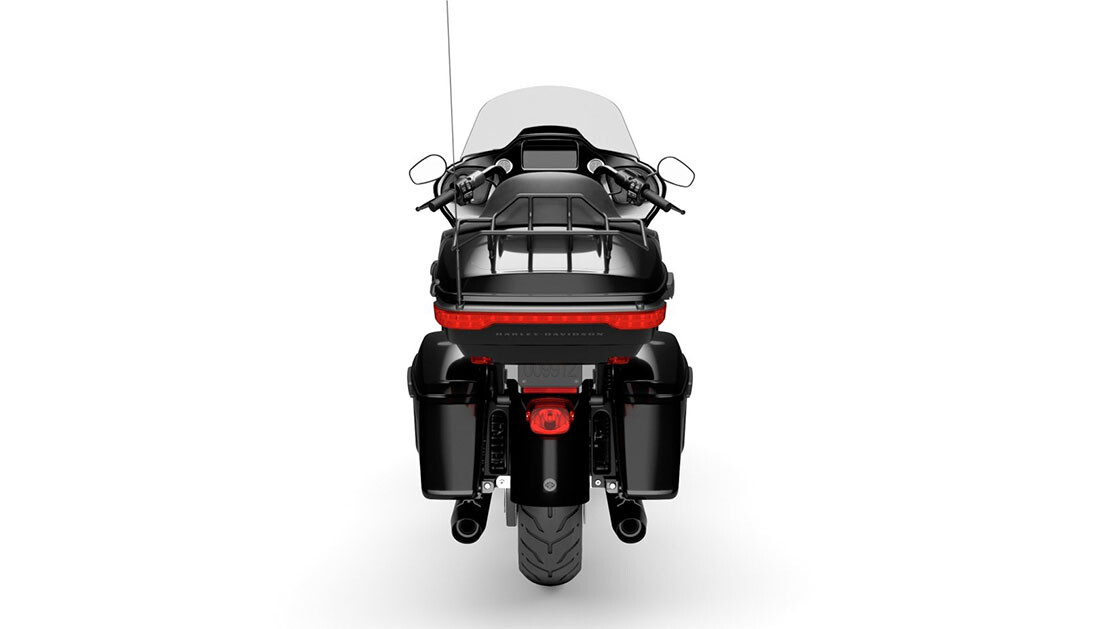

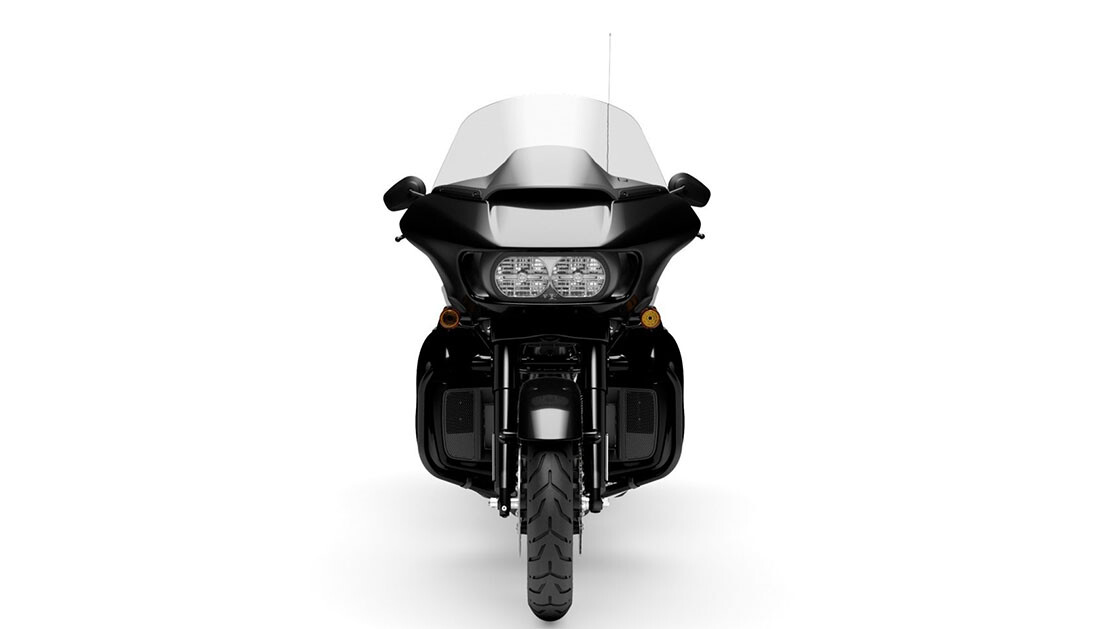

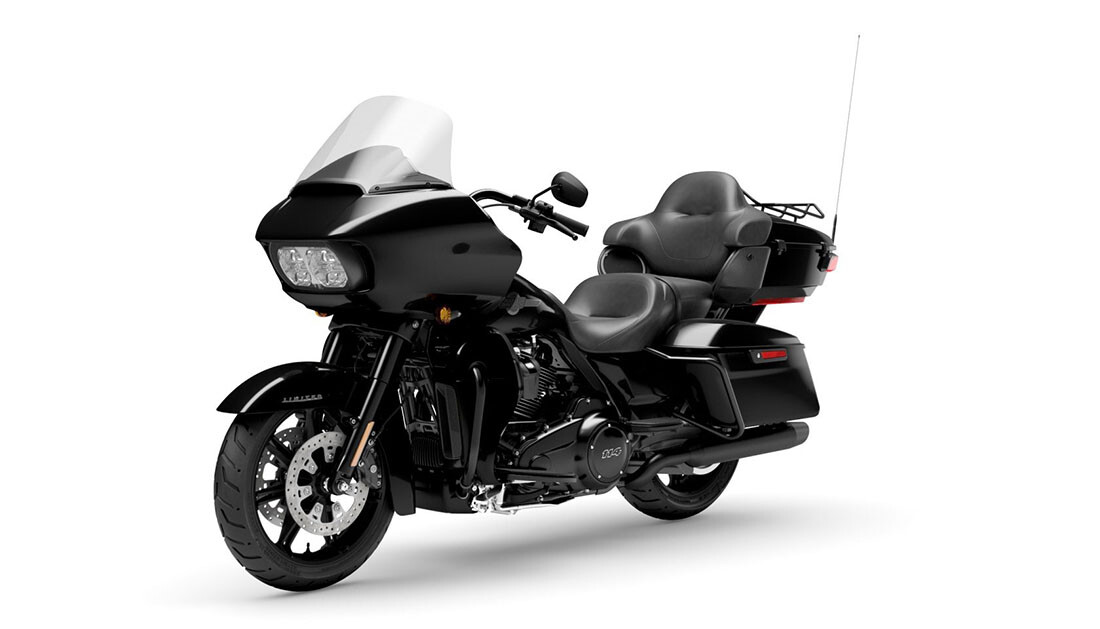

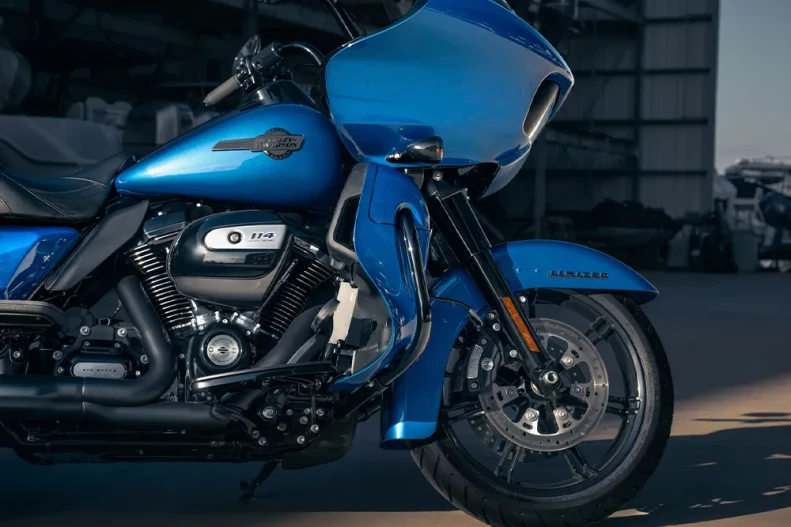

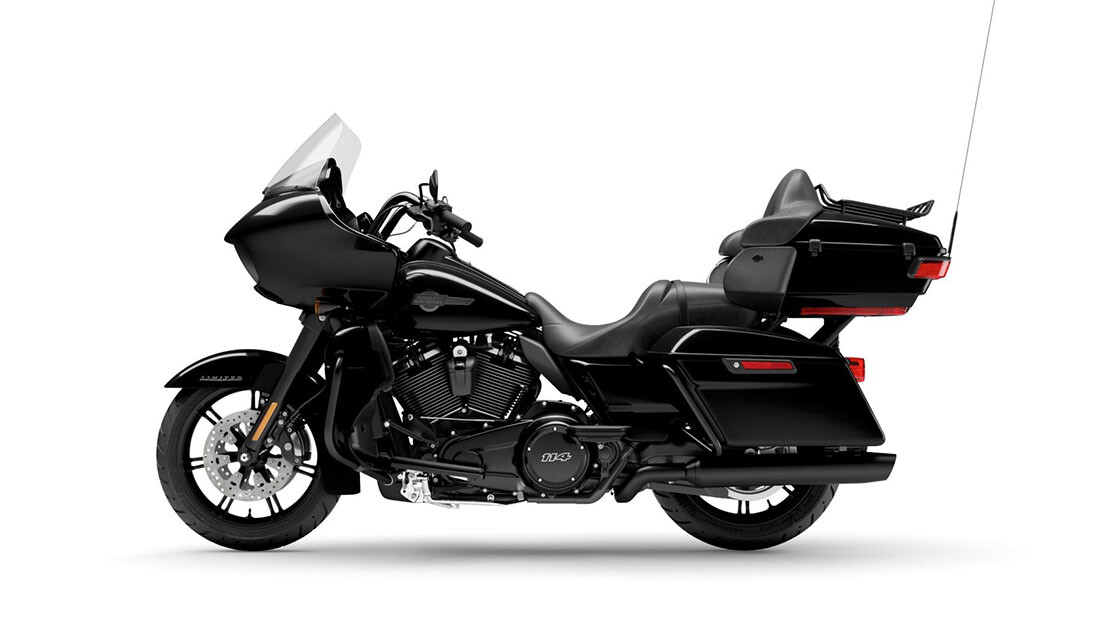

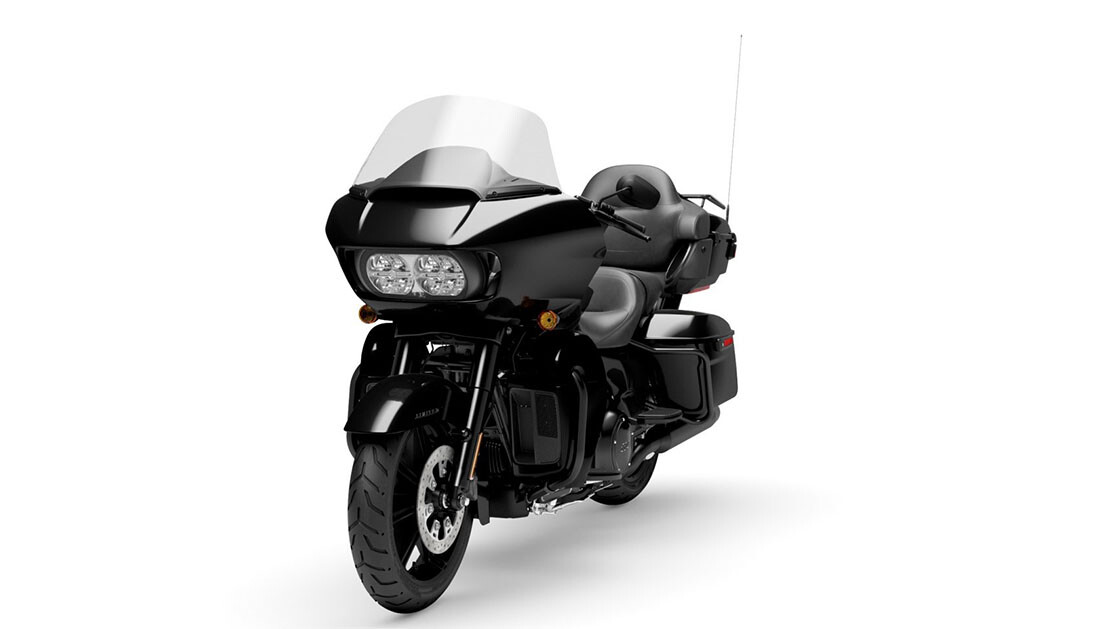

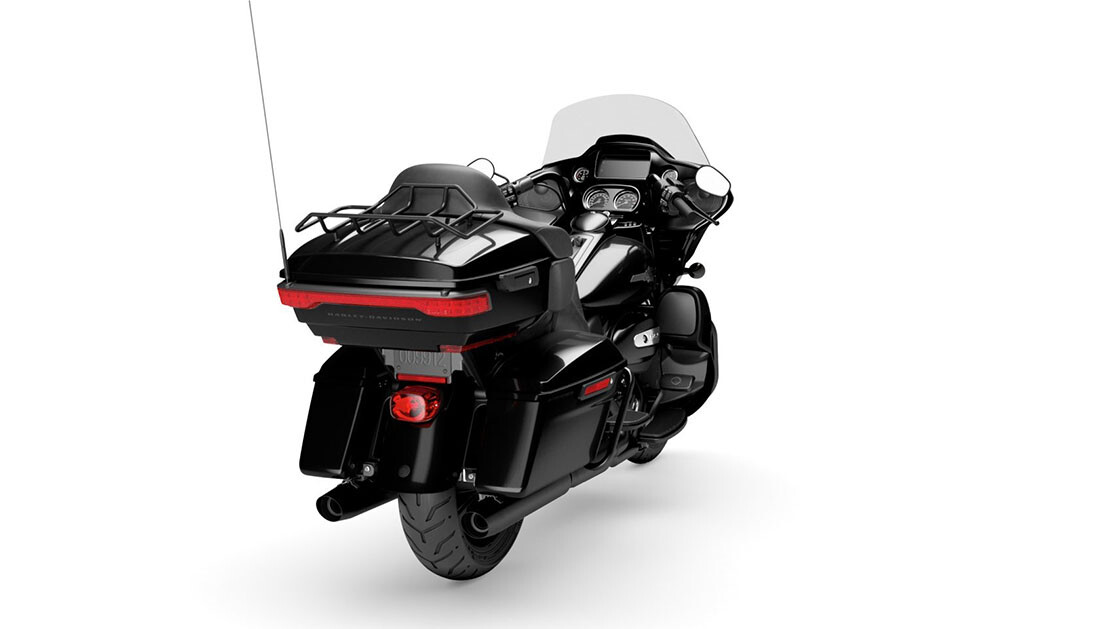

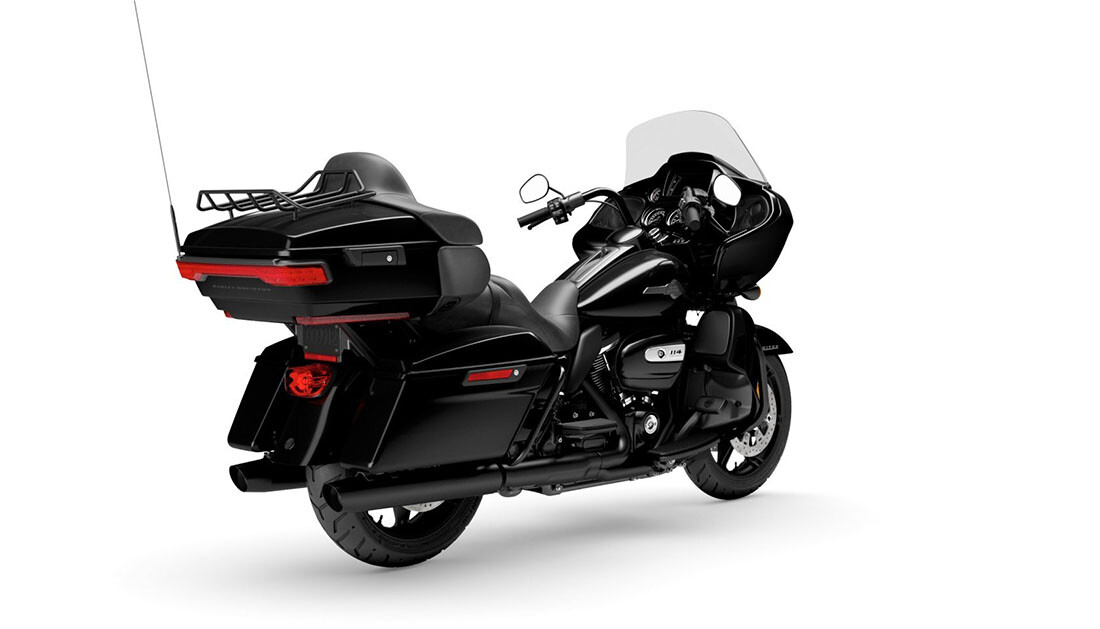

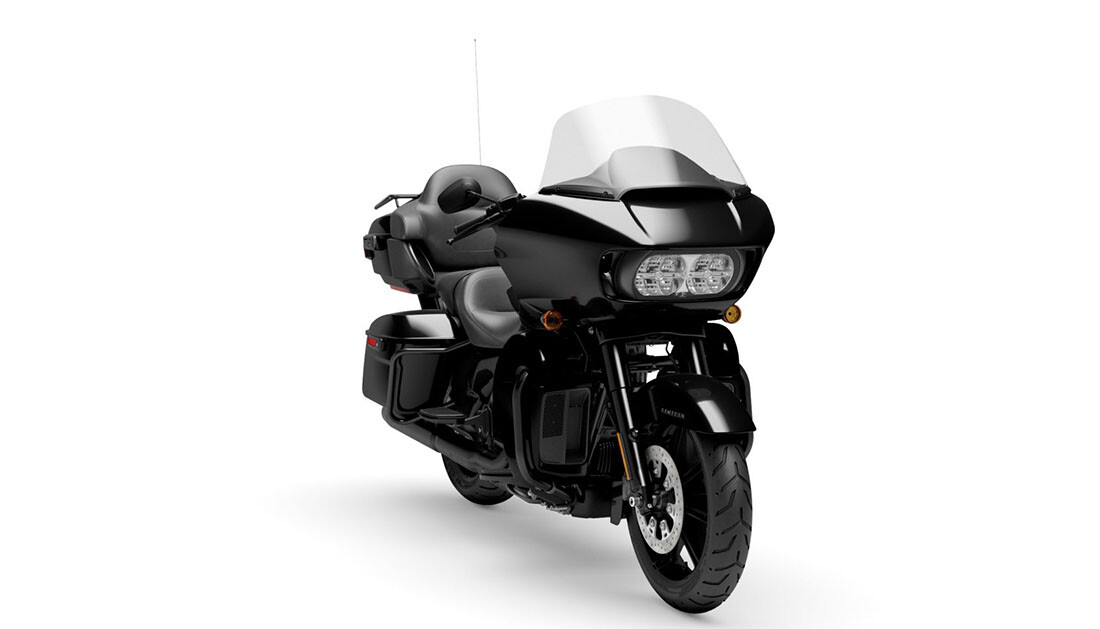

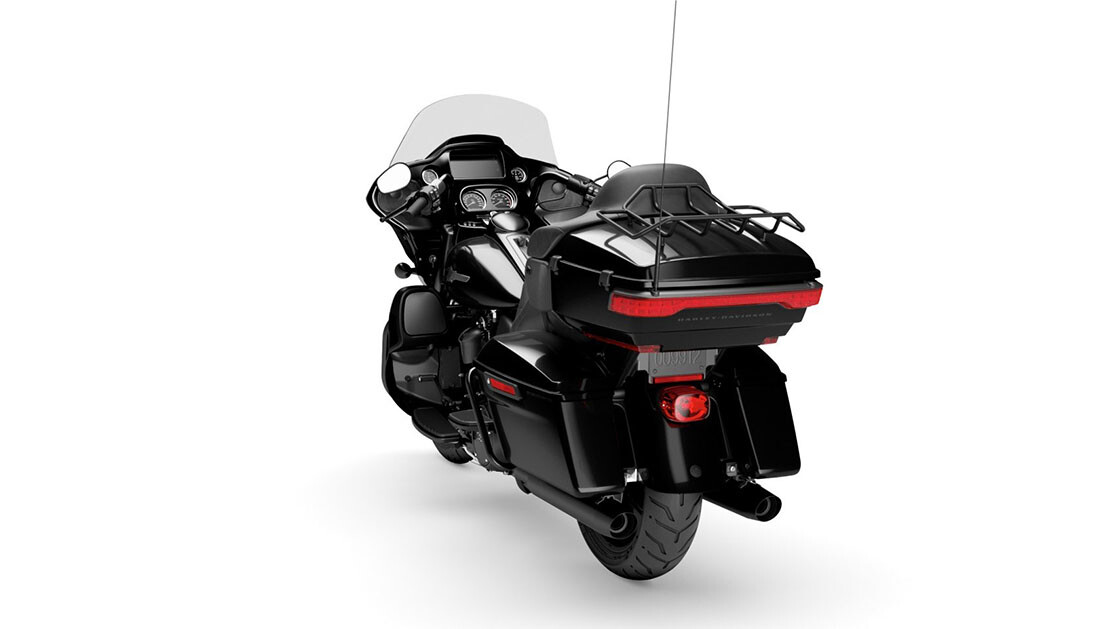

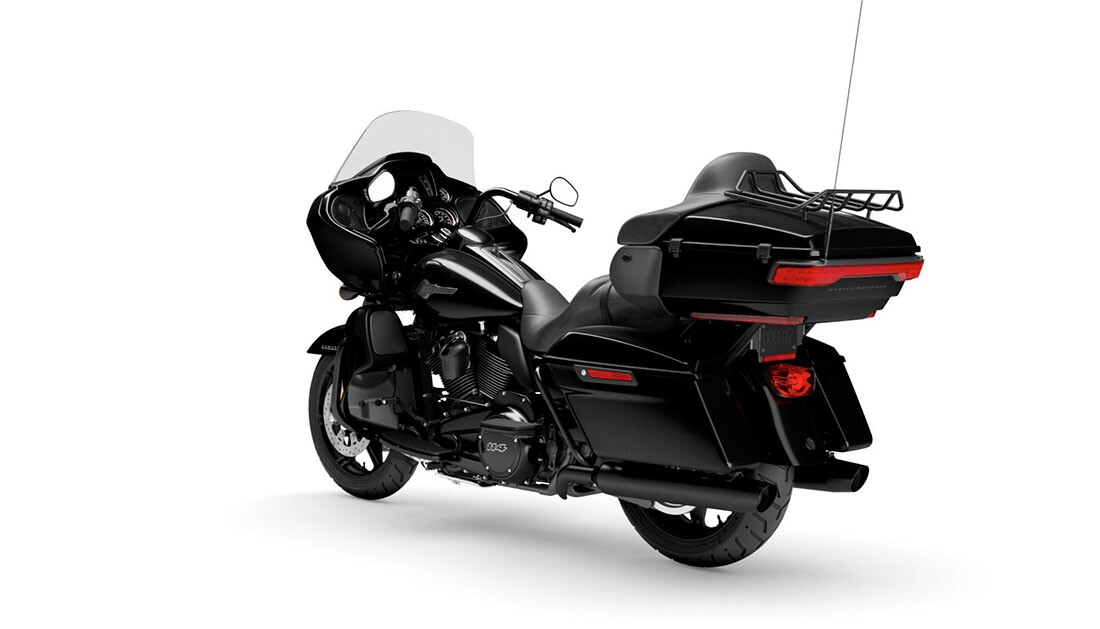

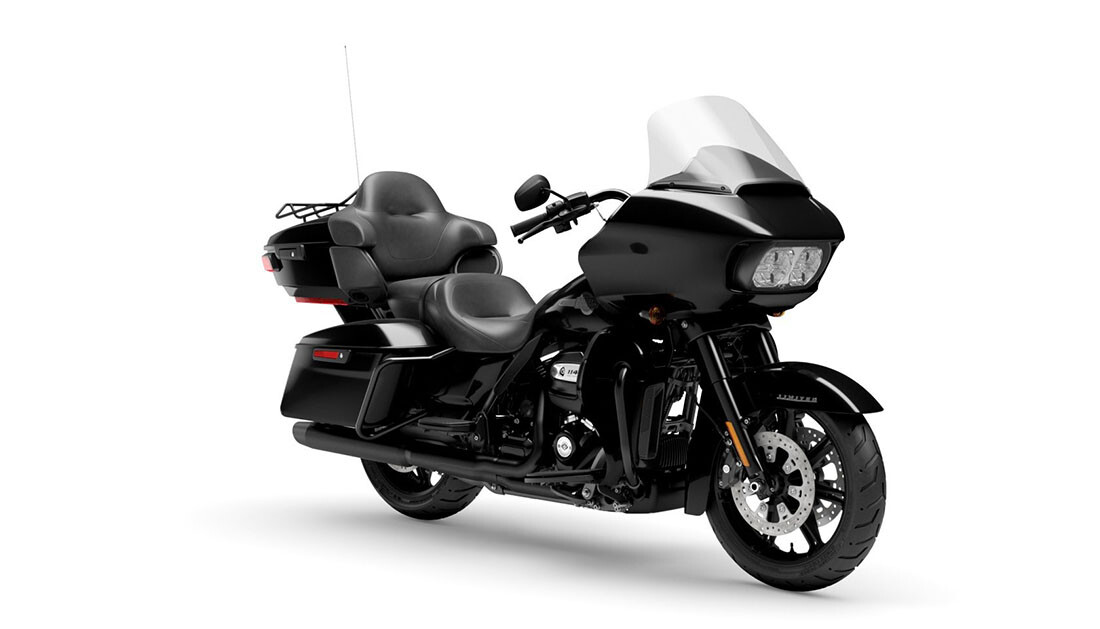

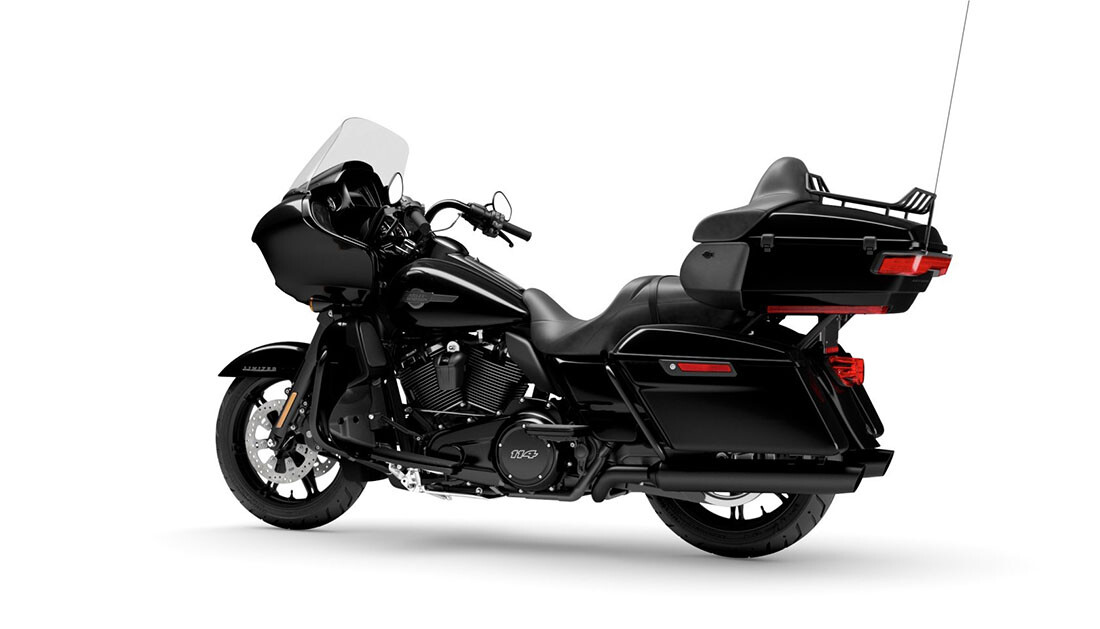

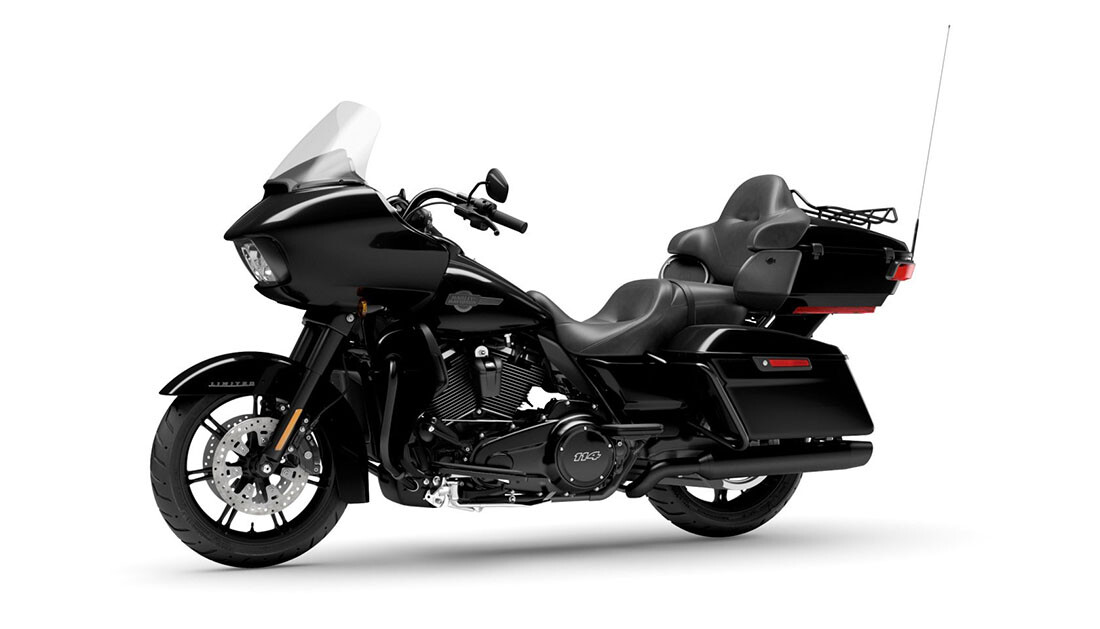

Road Glide^® Limited

Specifications

• Pricing

  add remove
  • Base MSRP
    $32,499
  • Vivid Black
    $750
  • Premium Solids
    $1,000
  • Two-Tone
    $1,800
  • Rider Safety Enhancements (Optional upgrade)
    $1,100
  • California Emissions
    $200
  • Freight
    $850
• Dimensions

  add remove
  • Length
    102.2 in
  • Seat height, unladen
    28.9 in
  • Ground clearance
    5.1 in
  • Rake (steering head)
    26
  • Trail
    6.7 in
  • Wheelbase
    64 in
  • Tires, front specifications
    BW 130/70B18 63H
  • Tires, rear specifications
    BW 180/55B18 80H
  • Fuel Capacity
    6 gal
  • Oil capacity
    5 qt.
  • Weight, as shipped
    897 lbs
  • Weight, in running order
    932 lb
  • Luggage capacity – volume
    4.7 cu ft (0.132 m³)
  • Tire, type
    Dunlop® Harley-Davidson Series, bias blackwall front and rear
• Engine

  add remove
  • Engine
    Twin-Cooled™ Milwaukee-Eight® 114
  • Bore
    4 in
  • Stroke
    4.5 in
  • Displacement
    113.99 in³
  • Compression ratio
    10.5:1
  • Fuel system
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust
    2:1:2 dual exhaust with 4 in. tapered mufflers
• Performance

  add remove
  • Engine torque testing method
    J1349
  • Engine torque
    122.4 ft-lb
  • Engine torque (RPM)
    2750
  • Horsepower
    93 HP / 69 kW @ 5020 rpm
  • Lean angle, right (deg.)
    32
  • Lean angle, left (deg.)
    32
  • Fuel economy testing method
    Estimated City/Hwy
  • Fuel economy
    43 mpg (5.5 l/100 km)
  • CO₂ emissions testing method
    –
  • CO₂ emissions
    –
• Powertrain

  add remove
  • Primary drive
    Chain, 34/46 ratio
  • Gear ratios (overall) 1st
    9.593
  • Gear ratios (overall) 2nd
    6.65
  • Gear ratios (overall) 3rd
    4.938
  • Gear ratios (overall) 4th
    4
  • Gear ratios (overall) 5th
    3.407
  • Gear Ratios (overall) 6th
    2.875
• Chassis

  add remove
  • Front fork
    49mm Dual Bending Valve
  • Rear shocks
    Premium standard height hand-adjustable rear suspension
  • Wheels, front type
    Gloss Black Slicer II
  • Wheels, rear type
    Gloss Black Slicer II
  • Brakes, type
    Dual floating rotors (front), fixed rotor (rear)
  • Brakes, caliper type
    32 mm, 4-piston fixed front and rear
• Electric

  add remove
  • Lights (as per country regulation), indicator
    LED 40-watt, 1,060 lumen low beam, 60-watt, 1,560 lumen high beam, 8W/28W tail/stop and front signal lights, LED rear turn signals
  • Gauges
    Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
• Infotainment

  add remove
  • Infotainment system
    Boom!™ Box GTS
  • Type
    Full Color TFT
  • Watts per channel
    25
  • Speakers
    4
  • Speaker size
    5.25 inch standard
  • Headset specifications (if equipped)
    16-64 ohms
  • AM
    Standard
  • FM
    Standard
  • Weather Band (WB)
    Standard
  • SD Card, Flash Drive and MP3 — via USB Connection
    Supported
  • Sirius^XM Presets
    20 - P&A; Upgrade (USA & Canada only)
  • Languages
    English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
  • Hands-free mobile phone — via Bluetooth
    Standard
  • Voice Recognition Languages: Phone functions only
    Phone dependent
  • Voice Recognition Languages: Tuner / Media / Navigation
    Phone dependent
  • Text-to-Speech (TTS) languages
    Phone dependent
  • Rider / passenger intercom
    Standard (Passenger Headset Sold Separately)
  • Vehicle information screen
    Standard
  • USB
    USB/MTP/iPod/iPhone
  • Bluetooth
    Phone/Media Supported
• Color options

  add remove

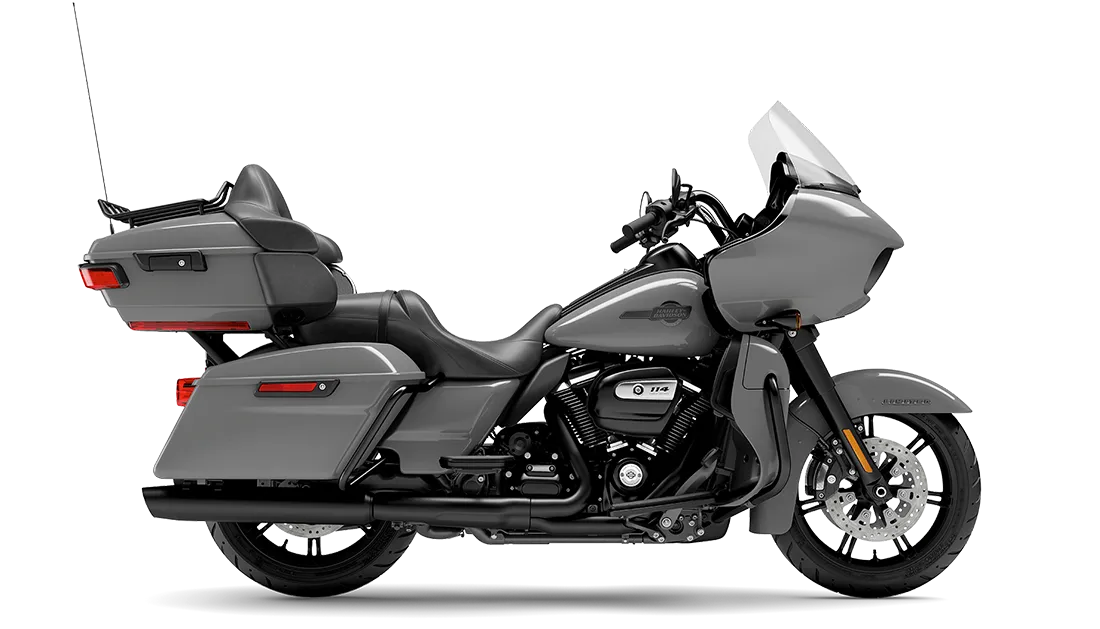

  • Billiard Gray

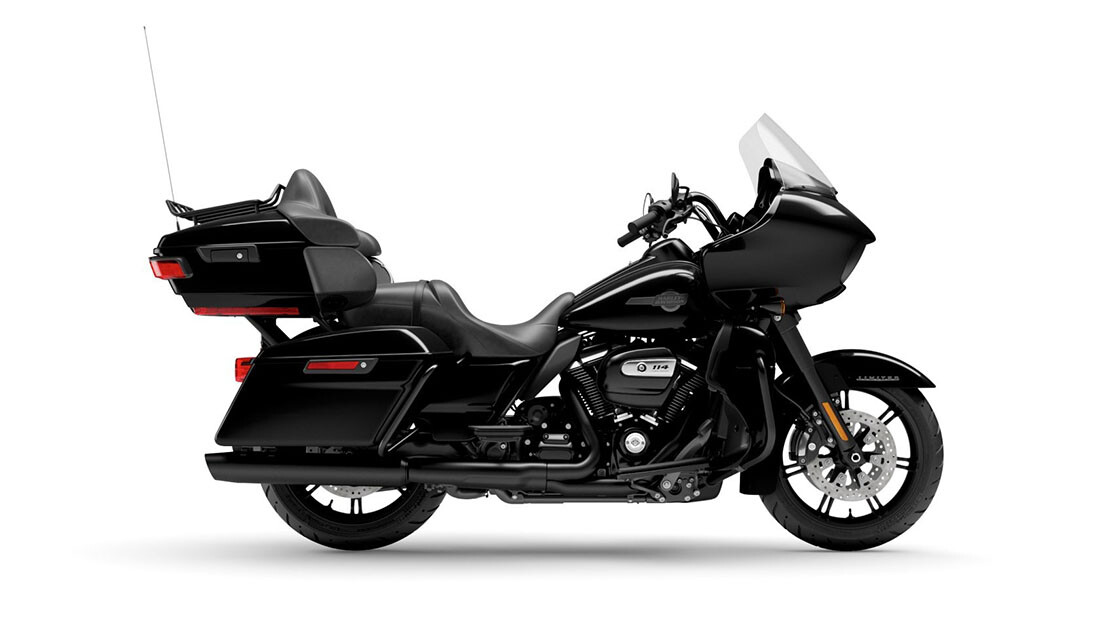

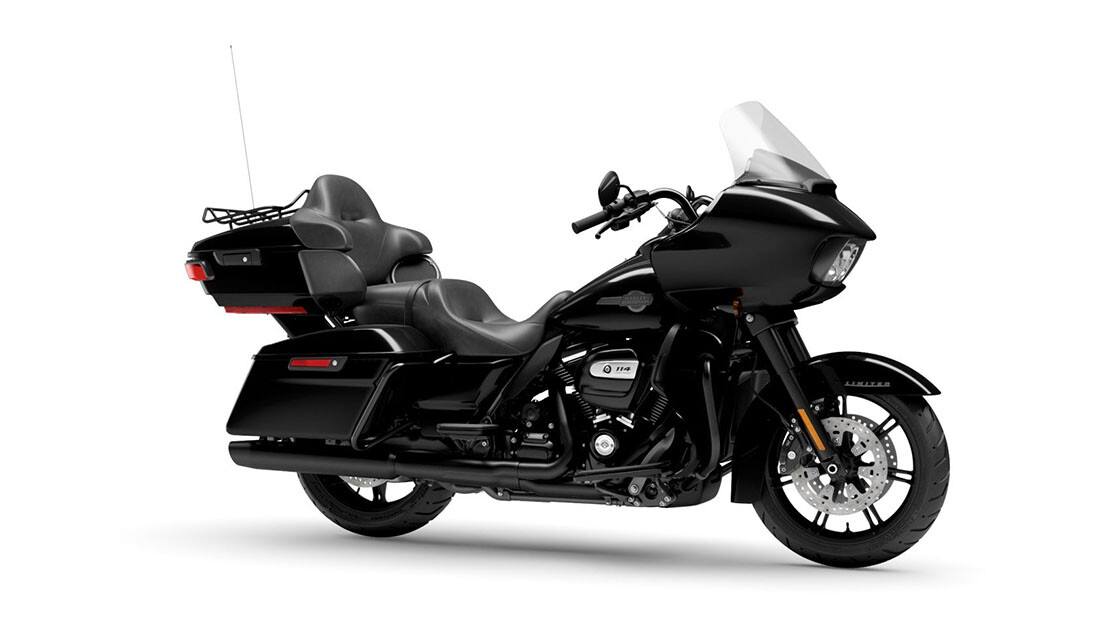

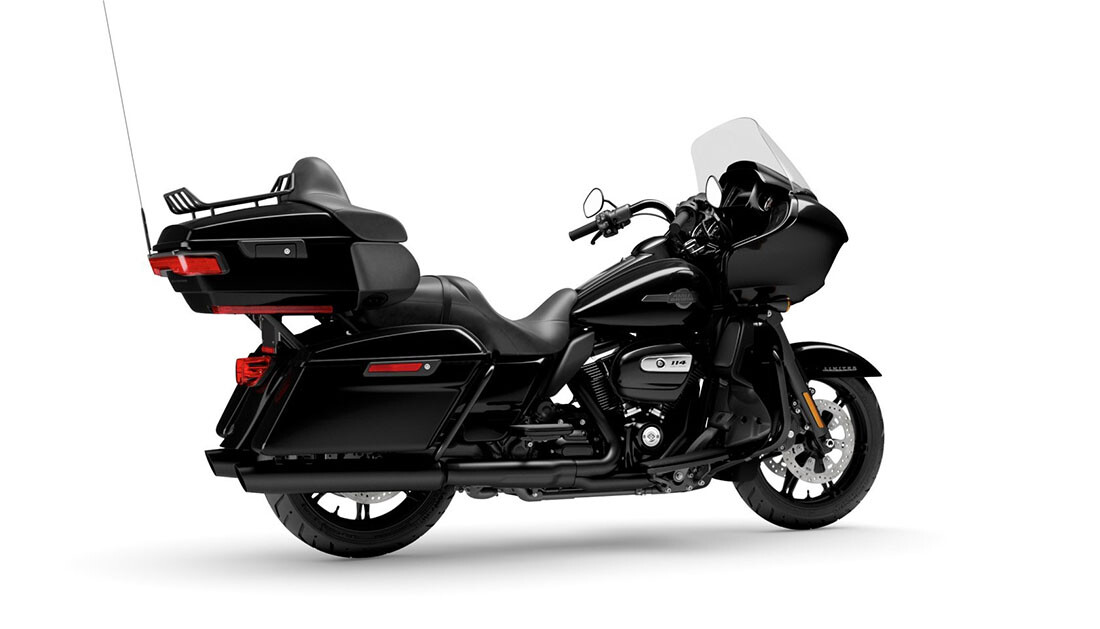

  • Vivid Black
  • Sharkskin Blue
  • Blue Burst
  • Red Rock / Vivid Black
